Levelmeter is a plugin for the SDR# programm

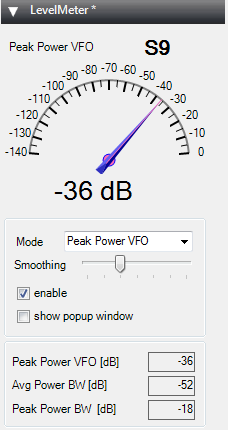

There are three modes to monitor the rx power rx power of VFO frequency (mode 0) average rx power in Bandwith (mode 1) peak rx power in Bandwith (mode 2)

Some settings can be changed in the config file unit of power level preselect power level mode show popup window on startup gauge min + max level (0 … -140) S-Meter on/off

to get the plugin running:

Download and unzip the package copy SDRSharp.LevelMeter.dll and SDRSharp.LevelMeter.xml into the SDRSharp direcotry edit Plugins.xml -> see readme.txt to copy and paste the correct line

Take a look to the config file “SDRSharp.LevelMeter.xml” if you like to change the default settings (needs to restart SDR#)

Find source code here LevelMeter Plugin Source Code

https://www.assembla.com/code/sdrsoft/subversion/nodes/

v06 - 10.11.2016 - tetsted with SDR# version 1489

Download: LevelMeterPlugin_v06.zip
